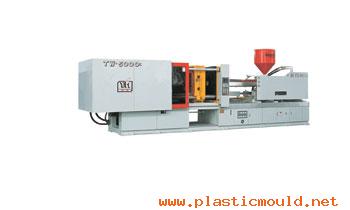

plastic machine tw5000

Specification TW-5000 item A B C screw diameter mm 80 85 90 L/D ratio 21.2 20 18.8 Cylinder head volume cm3 2000 2260 2540 shot weight g 1800 2030 2280 rate of injection(PS) g/s 430 480 540 plastising rate(PS) g/s 70 80 90 injection pressure mpa 168 149 133 screw speed rpm 150 sphere diamtter of nozzle mm SR15 clamping force KN 5000 max mould opening stroke mm 730 distance between the tie bars mm 800x710 min mould height mm 350 max mould height mm 750 dia of mould location hole mm 160H7 ejection stroke mm 185 ejection force KN 150 nos of liftout rod 13 rated pressure of oil pump Mpa 16 pump motor power Kw 45 heatingcapacity of screw cylinder Kw 24.6 oil tank capacity L 900 demensions of machine(lxWxH) m 7.65x1.78x2.65 machine weight t 19
